Mini PC Q30900G6 1U09 Series

Model: Q30900G6-1U09

Total LAN6
LAN Speed2.5G RJ45
Serial Ports1

Key Specs

CPU
Whiskey Lake / Coffee Lake / Comet lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
6
Storage
mSATA, SATA

Compatible Motherboard

MB2U61A-0900
MB2U61A-0900
Send Inquiry Buy Now
Q30921G6Q30931G6Q30951G6Q30971G6Q30952G6Q31011G6Q31012G6Q31021G6Q31031G6Q31051G6Q31071G6Q31072G6Q31073G6IntelCeleronPentiumCore i3Core i5Core i7Q1012G6Q1020G6Q1030G6Q1051G6Q1070G6Q1052G6Q1015G6Q1016G6Q1025G6Q1035G6Q1055G6Q1075G6Q1076G6Q1077G6Q30912G6

Main Features

  • Intel 8th Whiskey Lake-U Processor
  • Intel 8th Coffee Lake-U Processor
  • Intel 10th Comet lake-U Processor
  • 1 × Display Port, 1 × HDMI
  • 4 × USB 3.0
  • 1 × M.2, 1 × Mini PCIe, 1 × SATA 3.0
  • 1 × RS-232 (RJ-45)
  • 6 × Intel I225-V/I226-V 2.5G LAN

Processor System

CPU• Intel 8th Whiskey Lake-U Processor • Intel 8th Coffee Lake-U Processor • Intel 10th Comet lake-U Processor
CPU TDPBy CPU
Memory1 × DDR 4 SO-DIMM Socket (Up to 32 G,21 33/24 00MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset6 × Intel I225-V/I226-V 2.5G LAN
Watch DogYes

Front I/O

Power Button1
LED1 × Power LED,1 × HDD LED
USB4 × USB 3.0
Serial Port1 × RS-232 Port (RJ-45)
Reset Button1
Video Output1 × HDMI,1 × Display Port

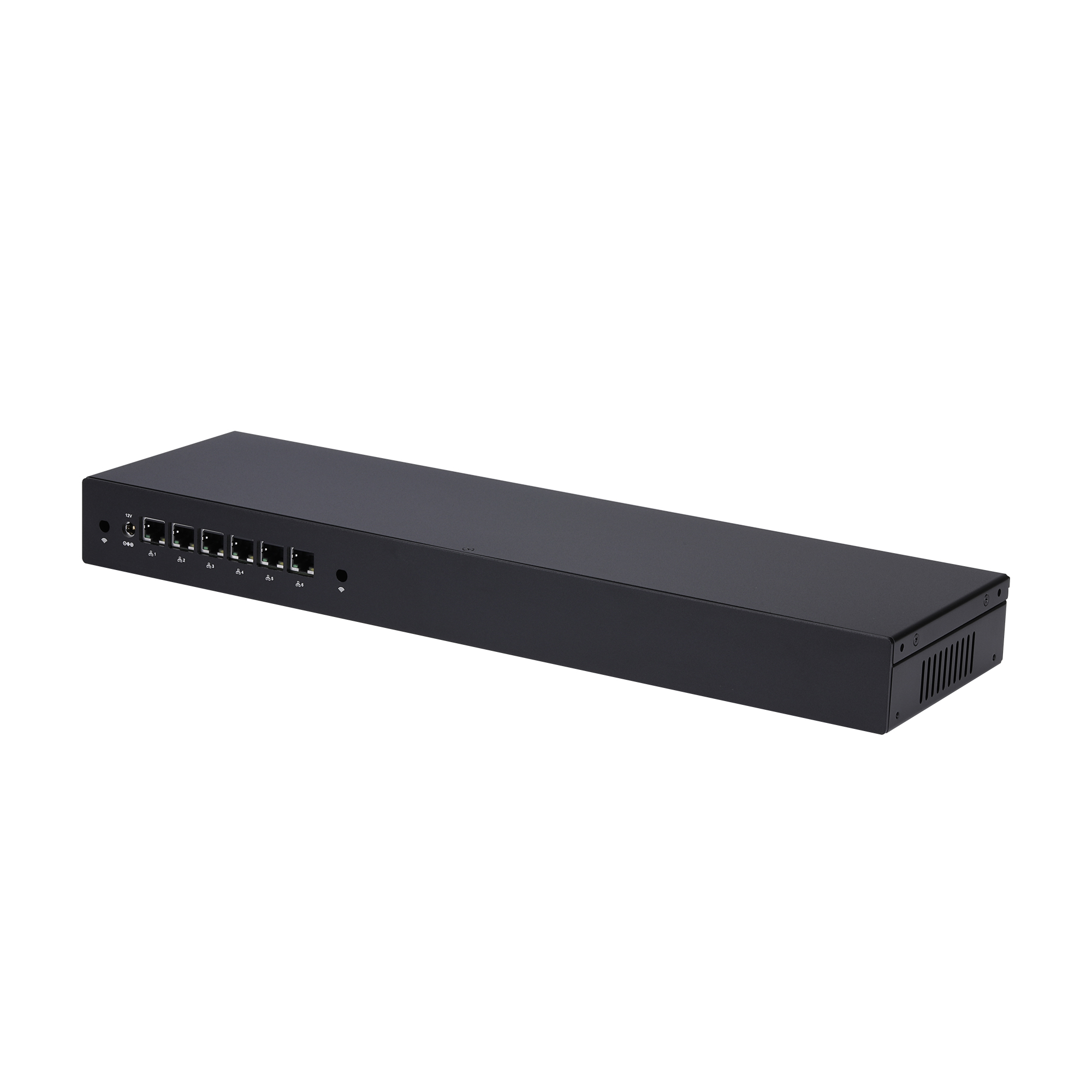

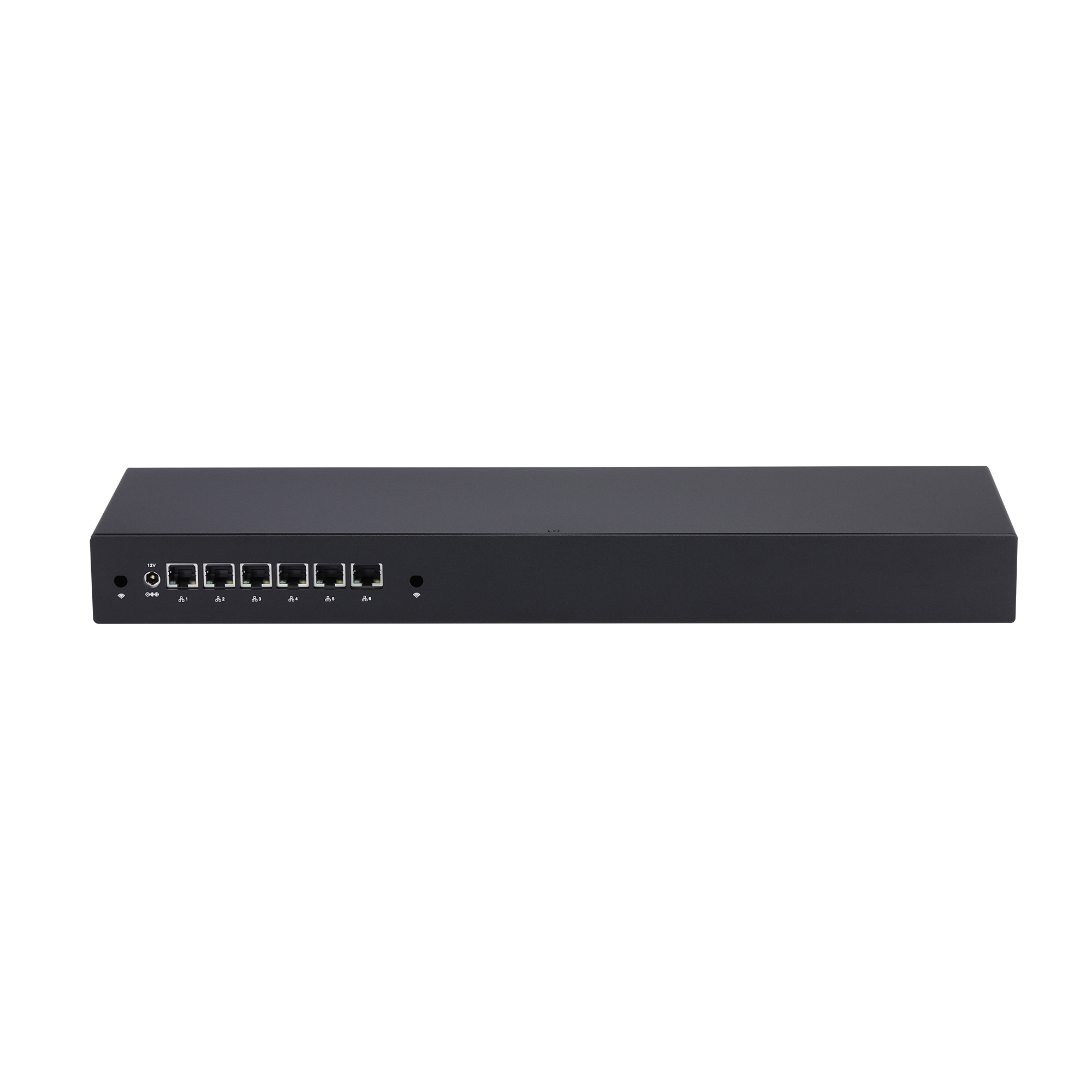

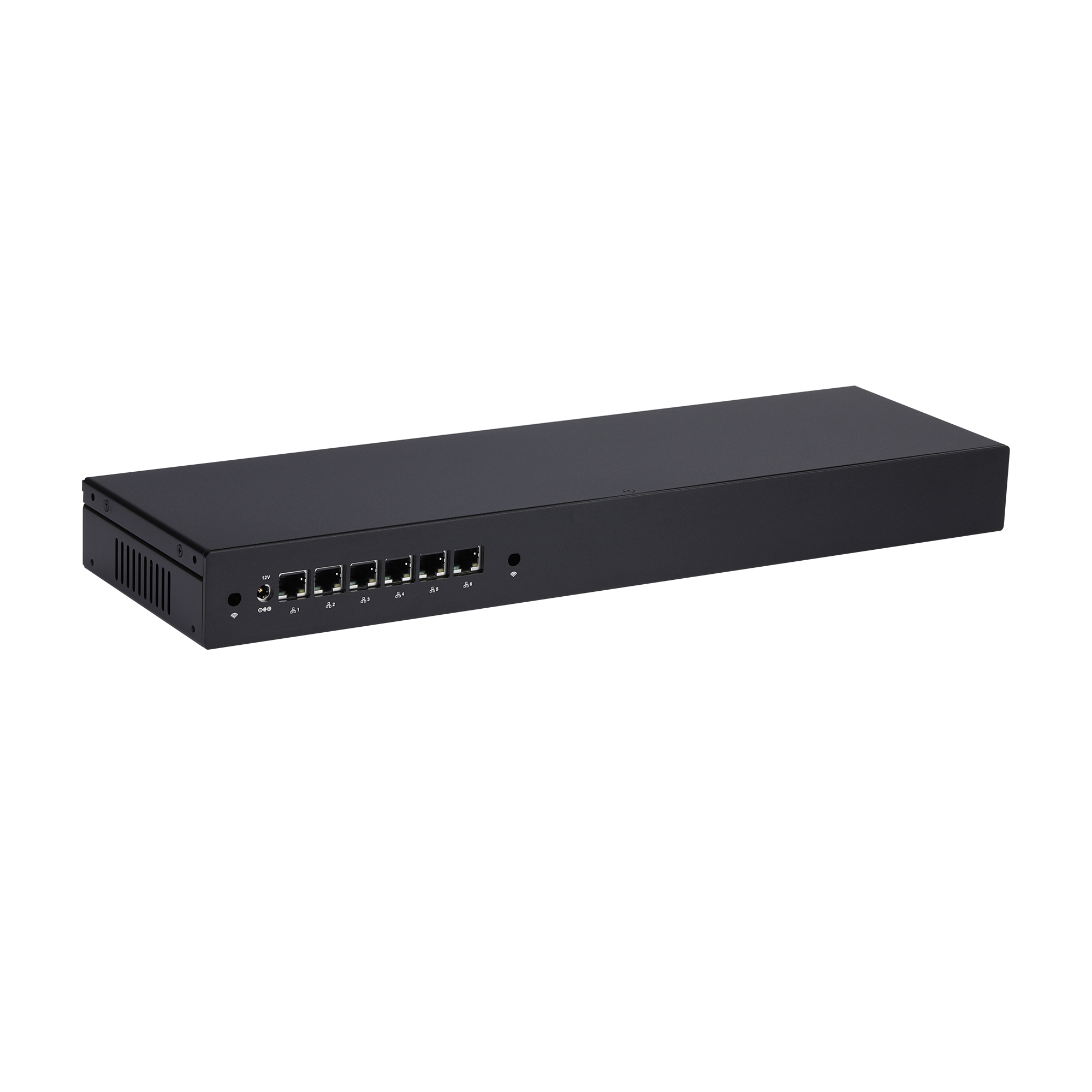

Rear I/O

Power1 × DC Jack
LAN6 × Intel I225-V/I226-V 2.5G LAN

Storage

Type1 × 2.5-inch HDD/SSD
Type1 × Mini PCIe for mSATA SSD

Expansion

Mini PCIe1 × Mini PCIe,Full-length for mSATA/4G
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot1
AutoStart Jumper1, 1 × 3Pin, Pitch 2.54mm
CMOS Clear Jumper1, 1 × 3Pin, Pitch 2.0mm
GPIO0

Power

AC InputAC 100-240V b y Default
Power AdapterDC 12V (5.5mm, 2.5mm)

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension440 × 127 × 44mm
Weight1.18kg
MountingN o
Packaging Dimension545 × 180 × 90mm
Kensington LockNo
Cooling ModeFan

OS Support

OSWindows 10, Linux

Package Contents

  • Mini PC × 1
  • AC Power Cable × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q30912G6-1U09 Whiskey Lake Celeron 4305U 2 / 2 2.2GHz 2M Intel UHD Graphics 15W
Q30921G6-1U09 Whiskey Lake Pentium 5405U 2 / 4 2.3GHz 2M Intel UHD Graphics 15W
Q30931G6-1U09 Whiskey Lake Core i3 8145U 2 / 4 2.1GHz ~ 3.9GHz 4M Intel UHD Graphics 15W
Q30951G6-1U09 Whiskey Lake Core i5 8265U 4 / 8 1.6GHz ~ 3.9GHz 6M Intel UHD Graphics 15W
Q30971G6-1U09 Whiskey Lake Core i7 8565U 4 / 8 1.8GHz ~ 4.6GHz 8M Intel UHD Graphics 15W
Q30952G6-1U09 Coffee Lake Core i5 8260U 4 / 8 1.6GHz ~ 3.9GHz 6M Intel UHD Graphics 620 15W
Q31011G6-1U09 Comet Lake Celeron 5205U 2 / 2 1.9GHz 2M Intel UHD Graphics 15W
Q31012G6-1U09 Comet Lake Celeron 5305U 2 / 2 2.3GHz 2M Intel UHD Graphics 15W
Q31021G6-1U09 Comet Lake Pentium 6405U 2 / 4 2.4GHz 2M Intel UHD Graphics 15W
Q31031G6-1U09 Comet Lake Core i3 10110U 2 / 4 2.1GHz ~ 4.1GHz 4M Intel UHD Graphics 15W
Q31051G6-1U09 Comet Lake Core i5 10210U 4 / 8 1.6GHz ~ 4.2GHz 6M Intel UHD Graphics 15W
Q31071G6-1U09 Comet Lake Core i7 10610U 4 / 8 1.8GHz ~ 4.9GHz 8M Intel UHD Graphics 15W
Q31072G6-1U09 Comet Lake Core i7 10810U 6 / 12 1.1GHz ~ 4.9GHz 12M Intel UHD Graphics 15W
Q31073G6-1U09 Comet Lake Core i7 10710U 6 / 12 1.1GHz ~ 4.7GHz 12M Intel UHD Graphics 15W
Q31074G6-1U09 Comet Lake Core i7 10510U 4 / 8 1.8GHz ~ 4.9GHz 8M Intel UHD Graphics 15W
