Mini PC Q30600GPR S20 Series

Model: Q30600GPR-S20

Total LAN16
LAN Speed1G RJ45
Serial Ports1

Key Specs

CPU
Skylake / Kaby Lake / Kaby Lake-R
Memory
DDR4 SO-DIMM · Max 32GB
LAN
16
Storage
mSATA, SATA

Compatible Motherboard

MB4U86R-0600
MB4U86R-0600
Send Inquiry
Q30712GPRQ30731GPRQ30751GPRQ30771GPRQ30811GPRQ30821GPRQ30831GPRQ30851GPRQ30871GPRIntelCeleronPentiumCore i3Core i5Core i7

Main Features

  • Intel 6th Skylake-U Processor
  • Intel 7th Kabylake-U Processor
  • Intel 8th Kabylake-R-U Processor
  • 1 × Display Port, 1 × HDMI
  • 2 × USB 3.0, 2 × USB 2.0
  • 1 × mSATA, 1 × Mini PCIe, 1 × M.2, 1 × SATA 3.0
  • 1 × RS-232 (RJ-45)
  • 8 × Realtek Gigabit LAN
  • 8 × Realtek RTL8153B Gigabit LAN

Processor System

CPU• Intel 6th Skylake-U Processor • Intel 7th Kabylake-U Processor • Intel 8th Kabylake-R-U Processor
CPU TDPBy CPU
Memory1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset16 × Realtek Gigabit LAN
Watch DogYes

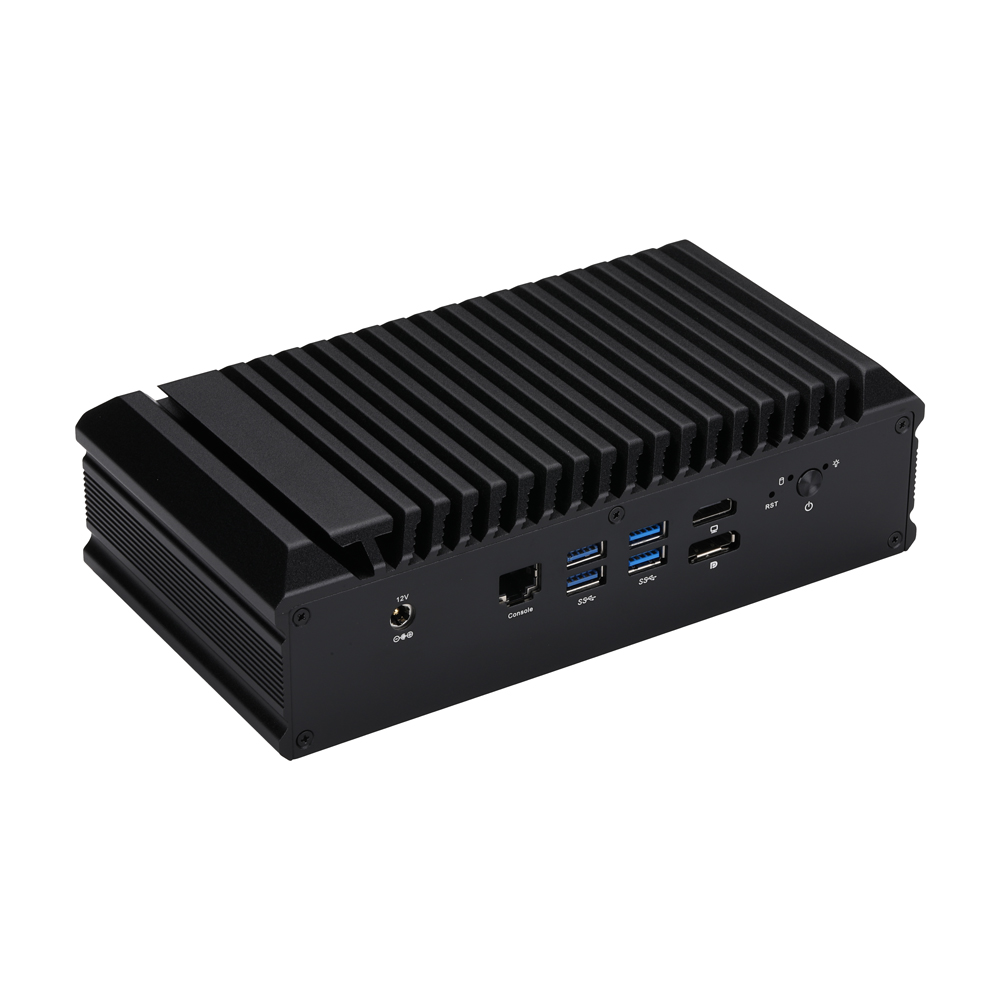

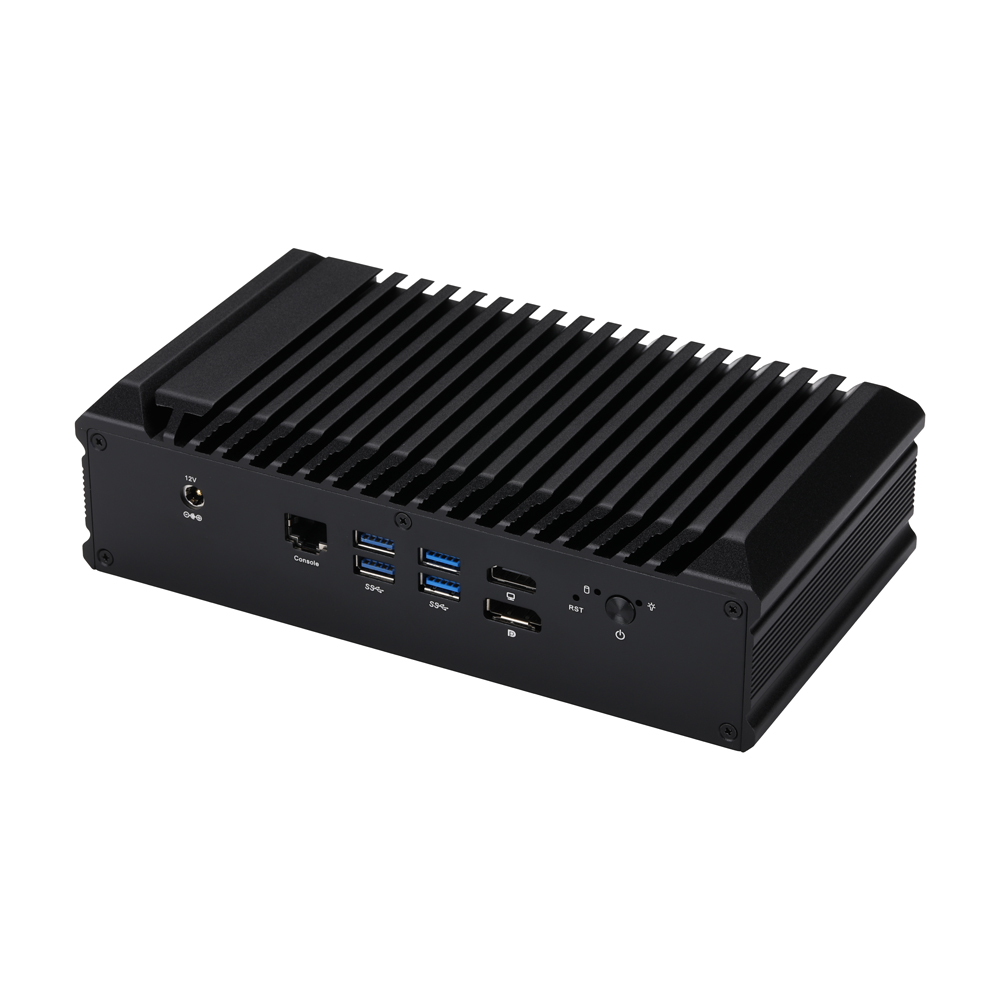

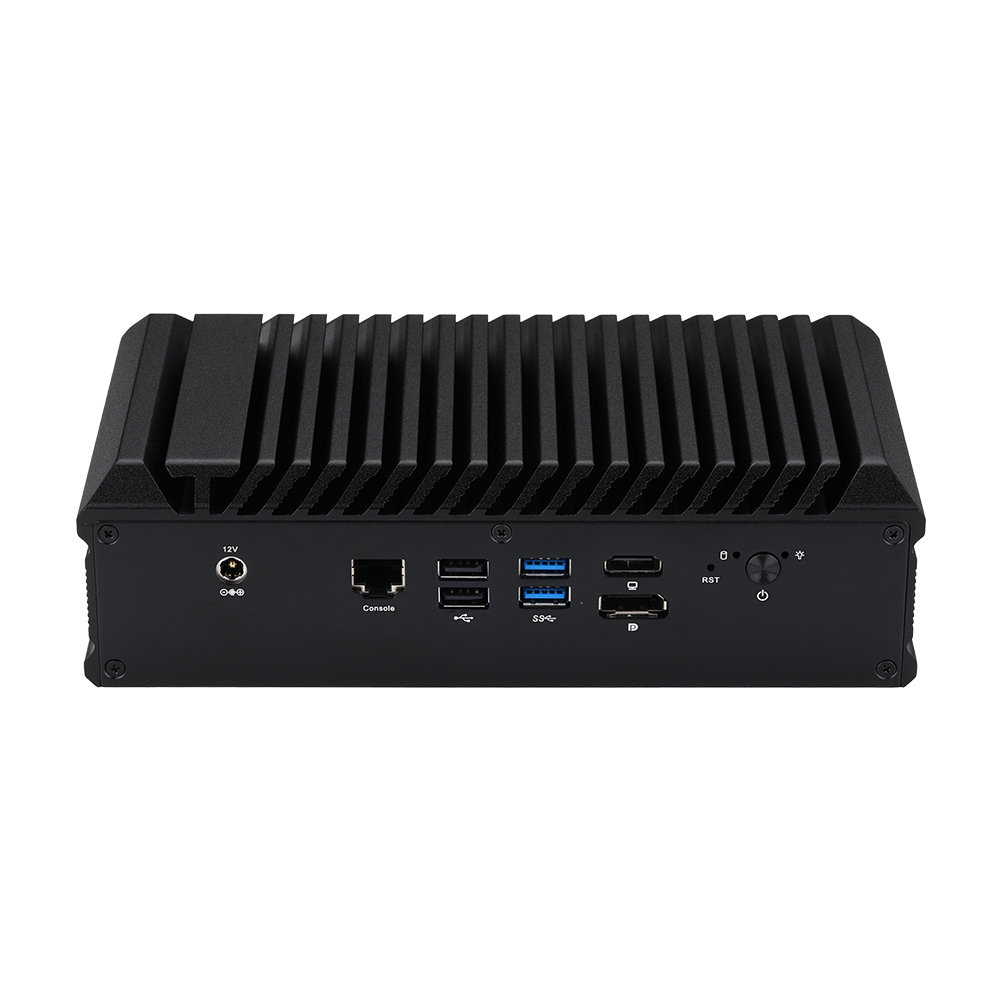

Front I/O

Power Button1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB2 × USB 3.0,2 × USB 2.0
Serial Port1 × RS-232 Port (RJ-45)
Power1 × DC Jack
Video Output1 × HDMI,1 × Display Port

Rear I/O

LAN8 × Realtek Gigabit LAN 8 × Realtek RTL8153B Gigabit LAN

Storage

Type1 × 2.5-inch HDD/SSD
Type1 × Mini PCIe for mSATA SSD

Expansion

Mini PCIe1 × Mini PCIe (Only Support USB Device) Full-length for 4G Half-length for Wi-Fi
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot1
AutoStart JumperYes,1 × 3Pin, Pitch 2.54mm
DC-INNo
CMOS Clear JumperYes,1 × 3Pin, Pitch 2.0mm
GPIO1,2 × 5Pin, Pitch 2.0mm
RS-4850

Power

Power Adapter12V4A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension221 × 121 × 62mm
Weight1.56kg
MountingVESA Mounting Bracket
Packaging Dimension285 × 260 × 93mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSWindows 10, Linux Windows 7 (only for 6th Gen Skylake)

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q30611GPR-S20 Skylake Celeron 3855U 2 / 2 1.6GHz 2M Intel HD 510 15W
Q30612GPR-S20 Skylake Celeron 3955U 2 / 2 2.0GHz 2M Intel HD 510 15W
Q30631GPR-S20 Skylake Core i3 6100U 2 / 4 2.3GHz 3M Intel HD 520 15W
Q30651GPR-S20 Skylake Core i5 6200U 2 / 4 2.3GHz ~ 2.8GHz 3M Intel HD 520 15W
Q30671GPR-S20 Skylake Core i7 6500U 2 / 4 2.5GHz ~ 3.1GHz 4M Intel HD 520 15W
Q30711GPR-S20 Kaby Lake Celeron 3865U 2 / 2 1.8GHz 2M Intel HD 610 15W
Q30712GPR-S20 Kaby Lake Celeron 3965U 2 / 2 2.2GHz 2M Intel HD 610 15W
Q30731GPR-S20 Kaby Lake Core i3 7100U 2 / 4 2.4GHz 3M Intel HD 620 15W
Q30751GPR-S20 Kaby Lake Core i5 7200U 2 / 4 2.5GHz ~ 3.1GHz 3M Intel HD 620 15W
Q30771GPR-S20 Kaby Lake Core i7 7500U 2 / 4 2.7GHz ~ 3.5GHz 4M Intel HD 620 15W
Q30811GPR-S20 Kaby Lake R Celeron 3867U 2 / 2 1.8GHz 2M Intel HD 610 15W
Q30821GPR-S20 Kaby Lake R Pentium 4417U 2 / 2 2.3GHz 2M Intel HD 610 15W
Q30831GPR-S20 Kaby Lake R Core i3 8130U 2 / 4 2.0GHz ~ 3.40GHz 4M Intel UHD 620 15W
Q30851GPR-S20 Kaby Lake R Core i5 8250U 4 / 8 1.6GHz ~ 3.4GHz 6M Intel UHD 620 15W
Q30871GPR-S20 Kaby Lake R Core i7 8550U 4 / 8 1.8GHz ~ 4.0GHz 8M Intel UHD 620 15W
