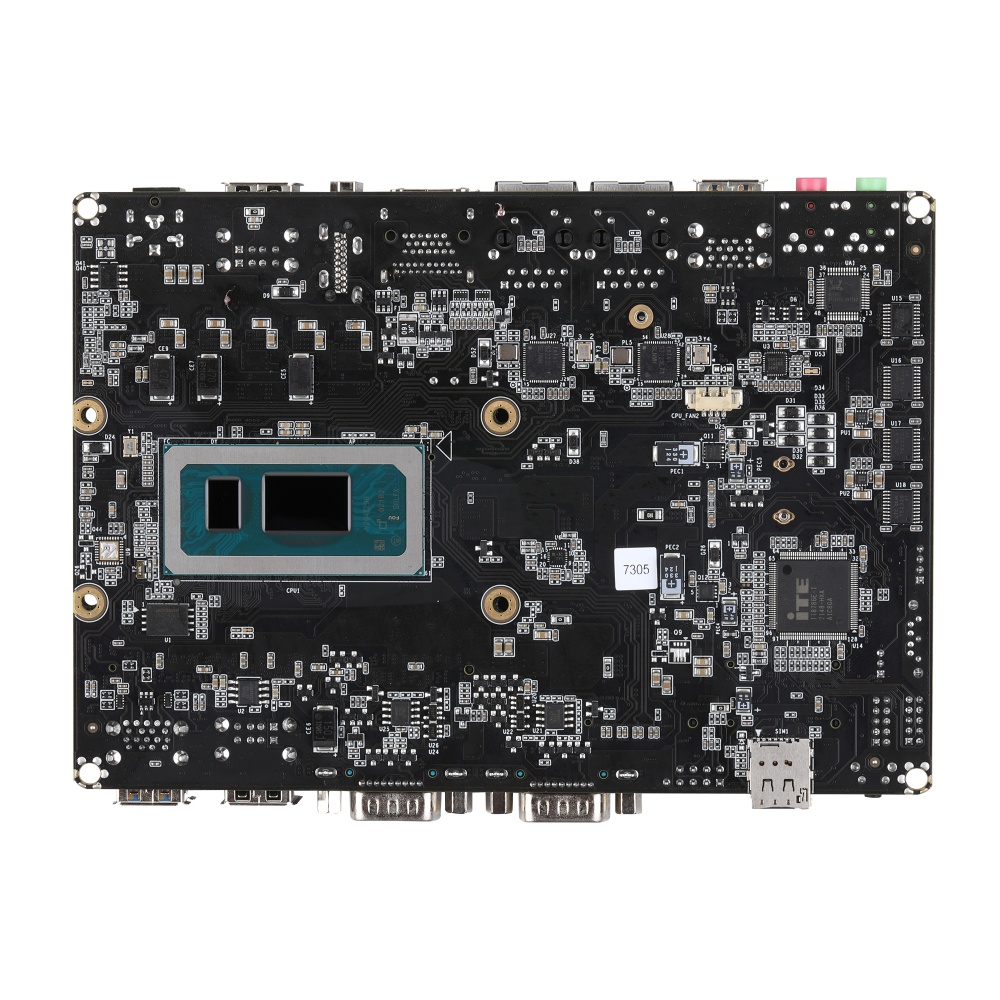

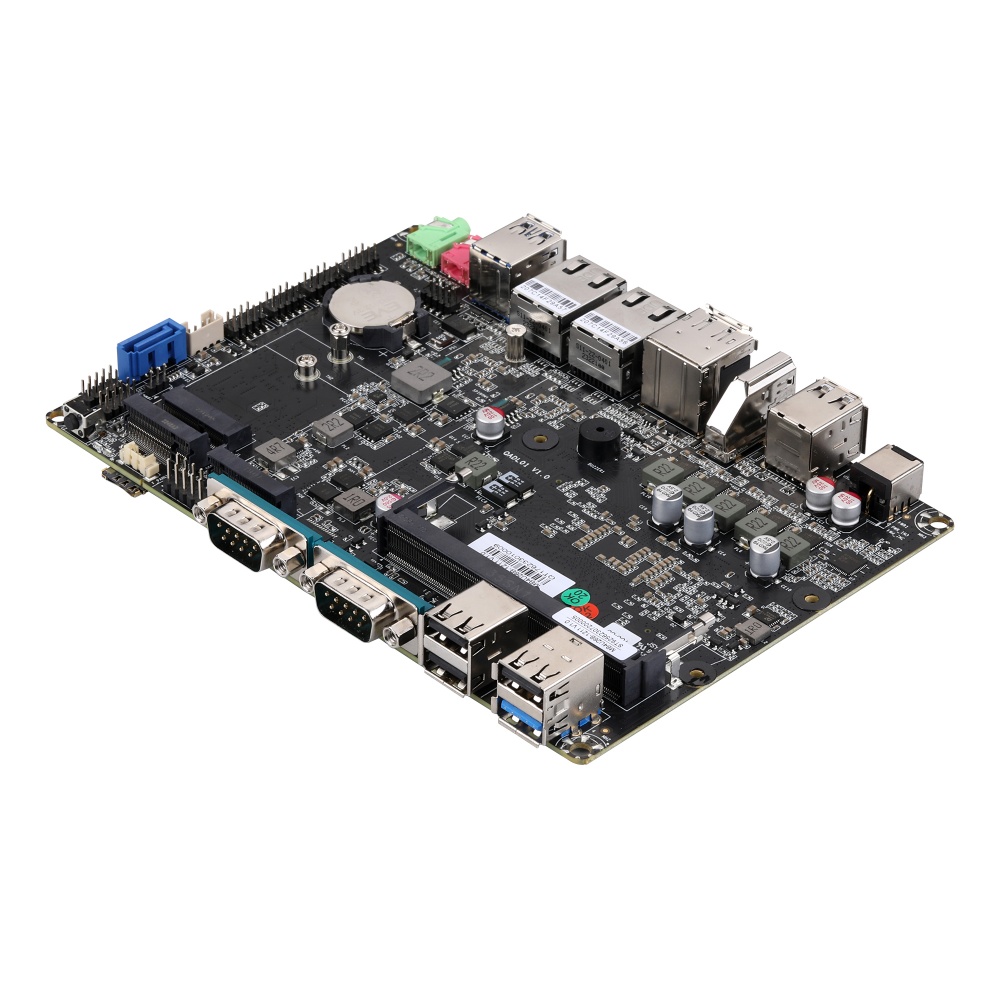

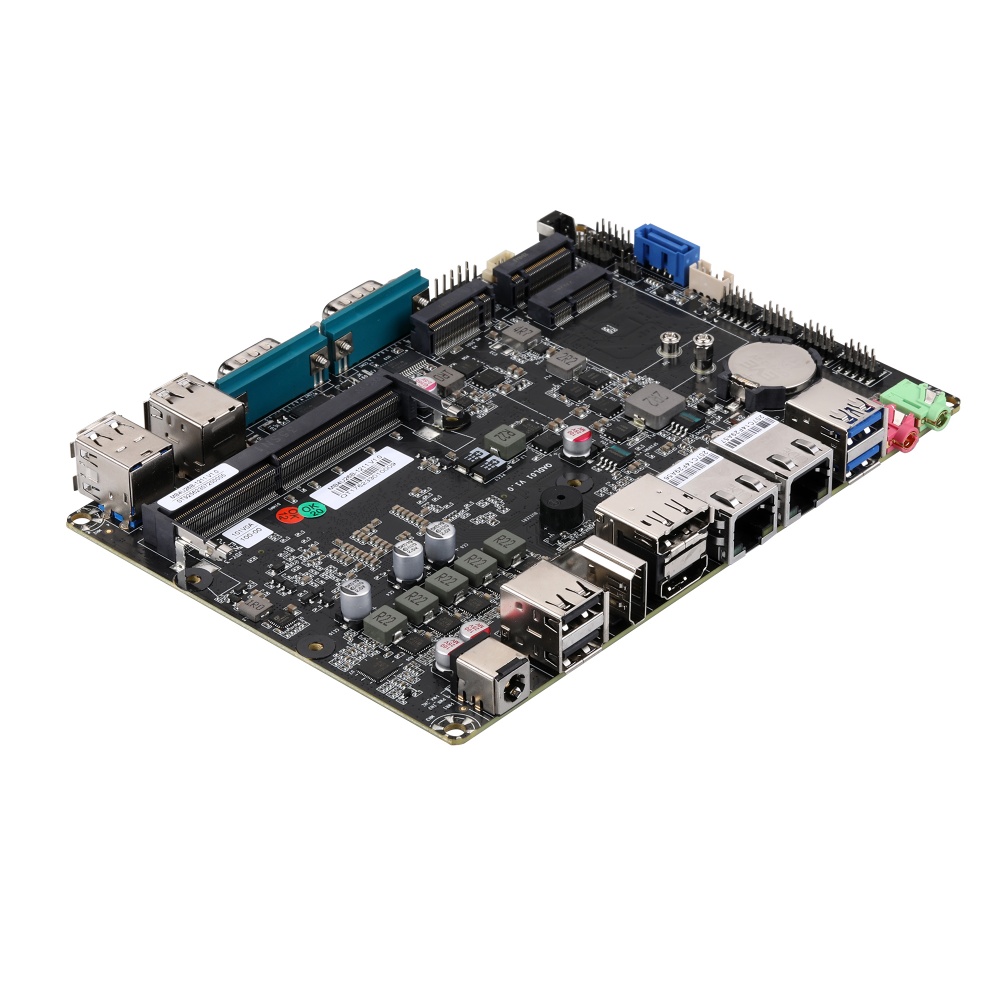

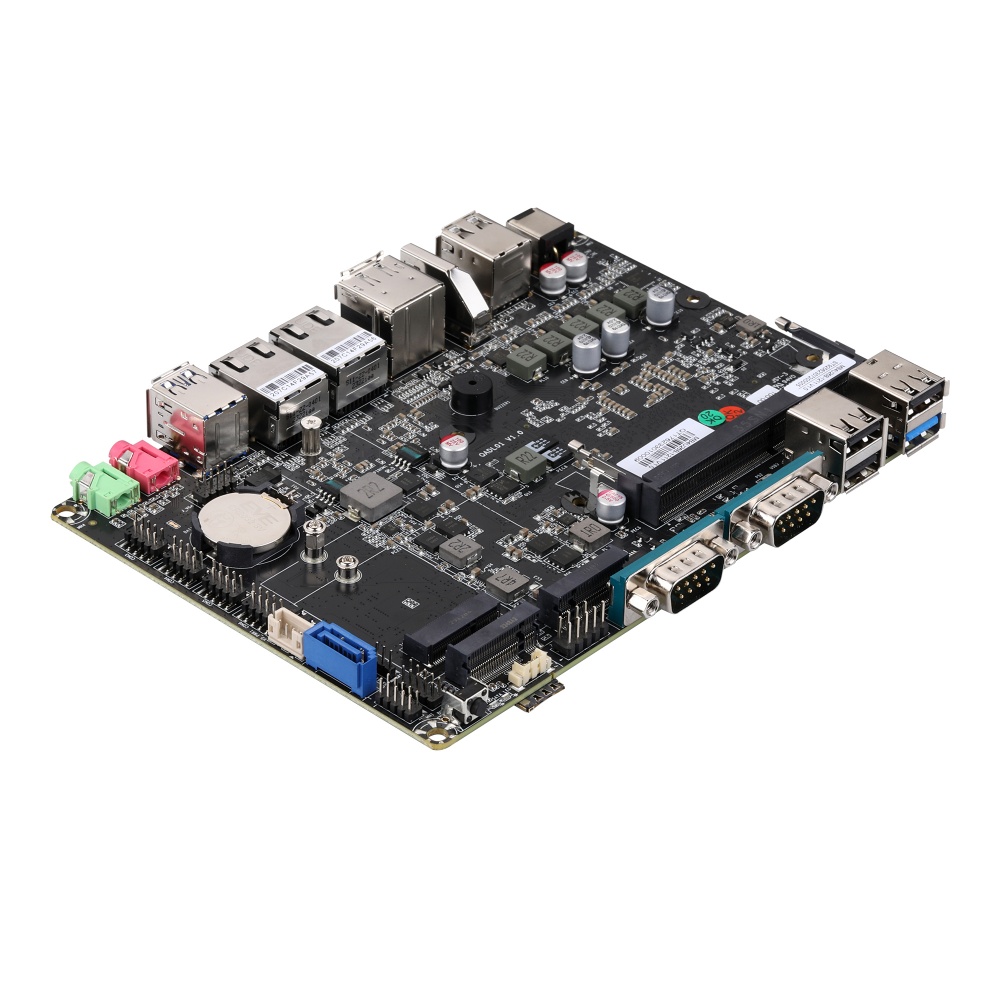

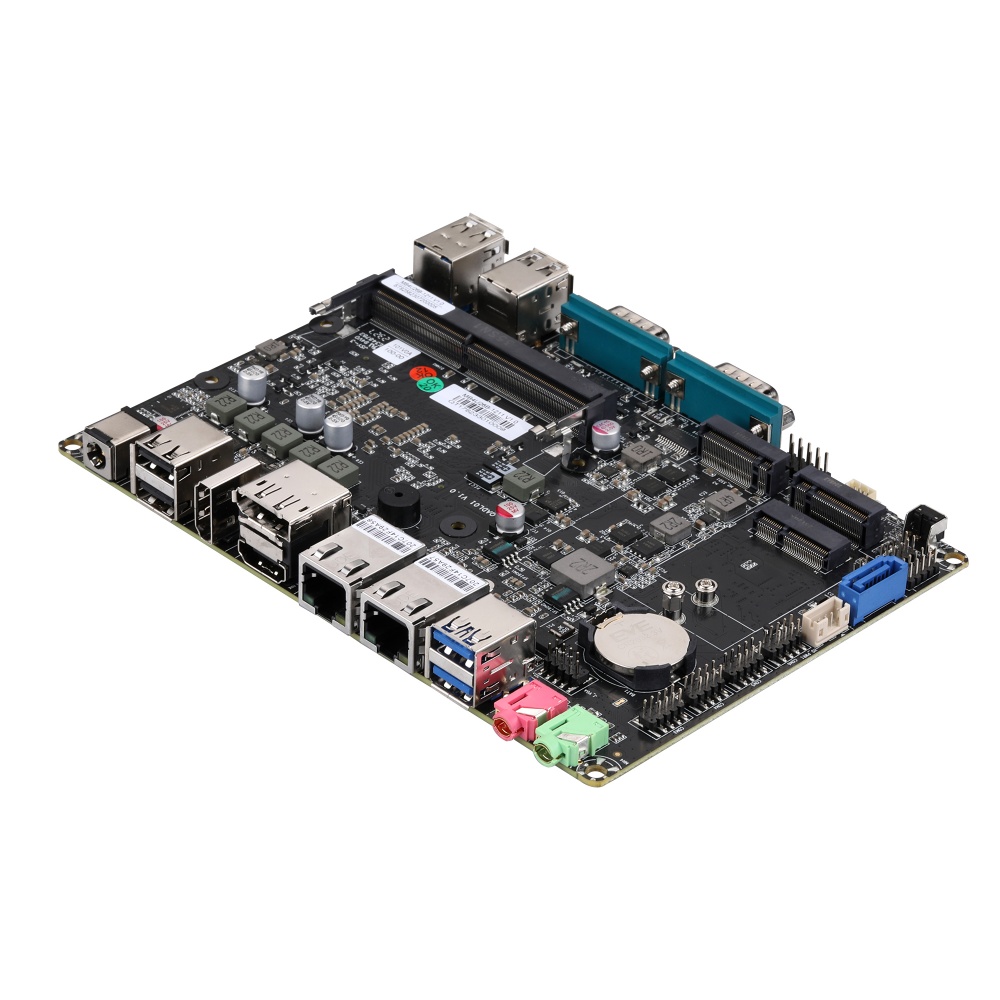

Motherboard MB4U26B-1200 Series

Name: Motherboard MB4U26B-1200 Series
Brand: Qotom
SKU: MB4U26B-1200

Model: MB4U26B-1200

Total LAN2

LAN Speed2.5G RJ45

Serial Ports6

Key Specs

CPU: Alder Lake-P / Raptor Lake-P
Memory: DDR4 SO-DIMM · Max 32GB
LAN: 2
Storage: M.2 Mkey, SATA
Board Size: 165x115

Compatible Systems

MB4U26B-1211 MB4U26B-1221 MB4U26B-1231 MB4U26B-1251 MB4U26B-1271 MB4P26B-1231 MB4P26B-1251 MB4P26B-1271 MB4H26B-1231 MB4H26B-1251 MB4H26B-1271 MB4H26B-1291 Intel Celeron Pentium Core i3 Core i5 Core i7

Main Features

Intel 12th Alder Lake–P Processor
Intel 13th Raptor Lake–P Processor
1 × Display Port, 2 × HDMI, 1 × VGA (Header)
6 × RS-232, 2 × RS-485
3 × USB 3.0, 5 × USB 2.0, 1 × SATA 3.0
1 × Mini-PCIe, 2 × M.2
2 × Intel I225-V/I226-V 2.5G LAN

Related Products

Mini PC Q31200X S20 Series

Q31200X-S20

OPS Q31200OPS S00 Series

Q31200OPS-S00

Mini PC Q31200X S10 Series

Q31200X-S10

Mini PC Q31200C S13 Series

Q31200C-S13

Mini PC Q31200C S20 Series

Q31200C-S20

Mini PC Q31200C S10 Series

Q31200C-S10

CPU	• Intel 12th Alder Lake–P Processor • Intel 13th Raptor Lake–P Processor
Chipset	By CPU
Dimension	165 × 115mm
Core Number	By CPU
Max. Speed	By CPU
L2 Cache	By CPU
BIOS	UEFI

Technology	DDR4 2133MHz SDRAM
Max.	32GB
Socket	1 × SO-DIMM

Controller	By CPU
VRAM	Shared Memory
VGA	1 (Header)
Display Port	1
HDMI	2 (Support HDMI 1.4a)
Multi Display	Yes

Interface	100/1000/2500Mbps
Controller	2 × Intel I225-V/I226-V 2.5G LAN
Connector	2 × RJ-45

Power Button	1
LED	1 × Power LED,1 × HDD LED
USB	1 × USB 3.0, 3 × USB 2.0
Serial Port	2 × RS-232

Mini PC Series

Motherboard Series

NAS Storage Series

OPS Series

Panel PC Series

Accessories

Motherboard MB4U26B-1200 Series

Key Specs

Compatible Systems

Main Features

Processor System

Memory

Graphics

Ethernet

Audio

Front I/O

Rear I/O

Storage

Expansion

Internal Connector

Watchdog Timer

Power

Environmental

Accessories

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

USB	2 × USB 3.0, 2 × USB 2.0
Audio	2 (Mic-in, Line-out)
DC-IN	1
HDMI	2
Display Port	1
Ethernet	2

M.2	1× M.2 for SSD (M key, Type: 2280,PCIe 4.0 × 4)
M.2	1 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)

TPM	1 (Option)
VGA Header	1, 2 × 5Pin, Pitch 2.0mm
Serial Port	4, 2 × 5Pin,Pitch 2.0mm, COM1/2 Support 5V/12V
RS-485	COM1/2 can be set up as RS-485
PS/2	1, 2 × 5Pin, Pitch 2.0mm
SATA	1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector	1, 1 × 4Pin, Pitch PH2.0mm
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
Clear CMOS Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
GPIO Header	1, 2 × 5Pin, Pitch 2.0mm
Front Panel Header	1, 2 × 5Pin, Pitch 2.54mm
Power Header	1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option)

Output	From Super I/O to Drag RESETCON#
Interval	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP	P-Cores	E-Cores
MB4U26B-1211	Alder Lake U	Celeron	7305	5 / 5	1.10 GHz	8M	Intel UHD Graphics	15-55W	1	4
MB4U26B-1221	Alder Lake U	Pentium	8505	5 / 6	1.20 GHz ~ 4.40 GHz	8M	Intel UHD Graphics	15-55W	1	4
MB4U26B-1231	Alder Lake U	Core i3	1215U	6 / 8	1.20 GHz ~ 4.40 GHz	10M	Intel UHD Graphics	15-55W	2	4
MB4U26B-1251	Alder Lake U	Core i5	1235U	10 / 12	1.30 GHz ~ 4.40 GHz	12M	Intel Iris Xe Graphics eligible	15-55W	2	8
MB4U26B-1271	Alder Lake U	Core i7	1255U	10 / 12	1.70 GHz ~ 4.70 GHz	12M	Intel Iris Xe Graphics eligible	15-55W	2	8
MB4P26B-1231	Alder Lake P	Core i3	1220P	10 / 12	1.50 GHz ~ 4.40 GHz	12M	Intel UHD Graphics	28-64W	2	8
MB4P26B-1251	Alder Lake P	Core i5	1240P	12 / 16	1.70 GHz ~ 4.40 GHz	12M	Intel Iris Xe Graphics eligible	28-64W	4	8
MB4P26B-1271	Alder Lake P	Core i7	1260P	12 / 16	2.10 GHz ~ 4.70 GHz	18M	Intel Iris Xe Graphics eligible	28-64W	4	8
